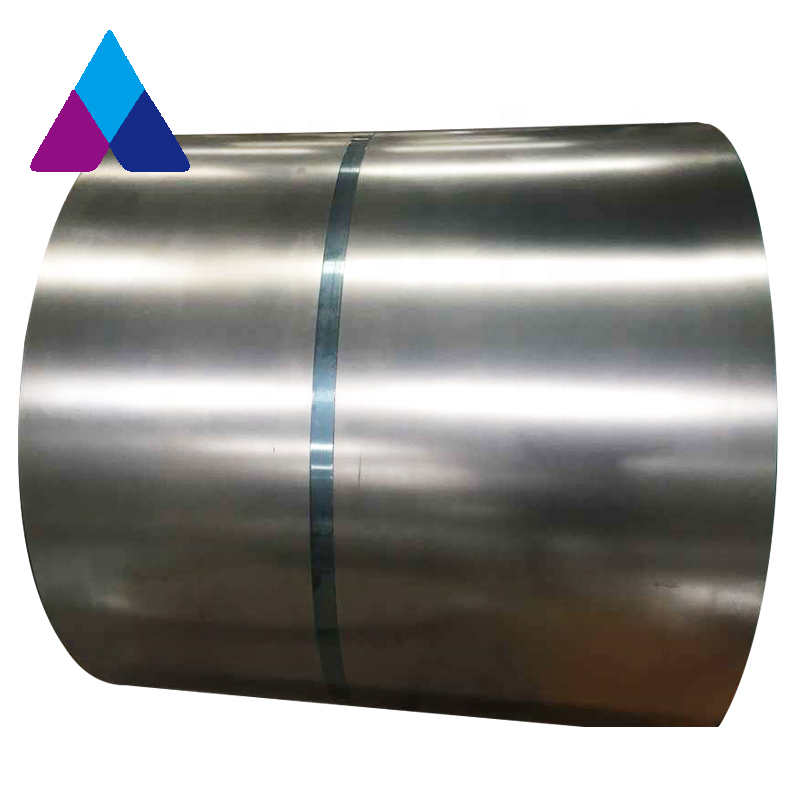

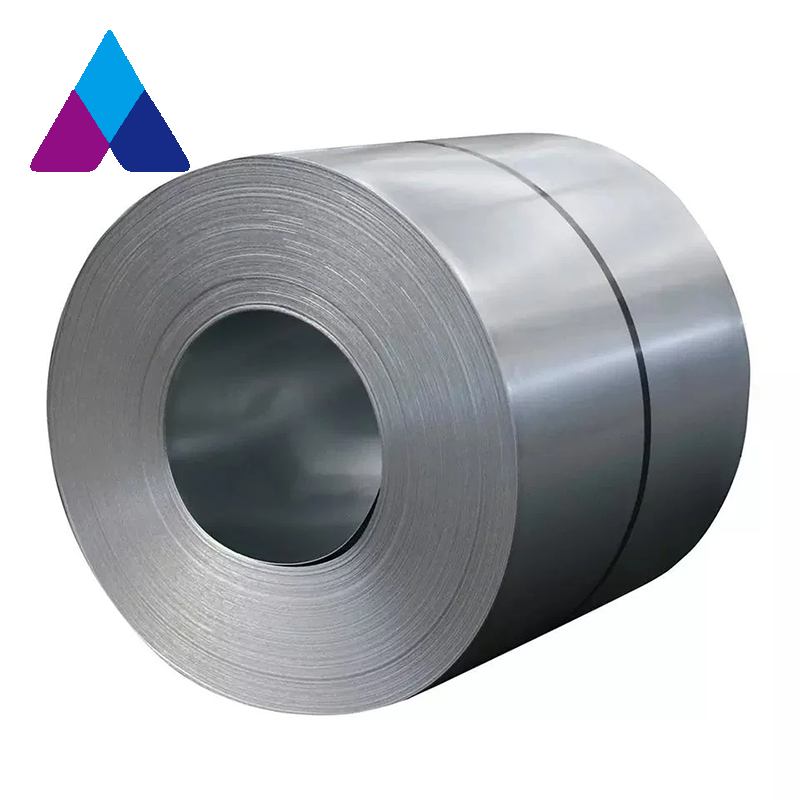

Silicon Steel Coil

Type: Oriented Silicon Steel
Thickness:0.35 - 0.65 mm
Material Grade: CRNO 50W470/600/800
Certifications: ISO9001

The company has sufficient inventory and can be picked up at any time.

Product Description

Silicon Steel

Type: Oriented Silicon Steel

Thickness:0.35 - 0.65 mm

Material Grade: CRNO 50W470/600/800

Certifications: ISO9001

Delivery Time:7 Days

Payment Term: T/T, L/C, WeChat pay, Alipay, etc

Application:Widely used in transformers, generators, various household motors and micro-motors, etc

Packaging Details:Standard seaworthy export packing or according to the customers' request


Specification Parameters


nameRollingOrientationSilicon ContentUse
Hot Rolled Low Silicon SteelHot RolledNo Orientation1.0%-2.5%Household Motors And Micromotors
Hot Rolled High Silicon SteelHot RolledNo Orientation3.0%-4.5%Transformer
Cold Rolled Grain Oriented Electrical SteelCold RolledNormal Orientation/High Magnetic Induction Orientation

Low Carbon Electrical SteelCold RolledNo Orientation<0.5%Household Motors, Micromotors, Small Transformers And Ballasts
Silicon SteelCold RolledNo Orientation0.5%-3.5%Medium And Large Motors, Generators And Transformers


Silicon steel, also known as electrical steel, lamination steel, or transformer steel, is a ferritic alloy of iron and silicon that have magnetic properties, which make it useful in motors and transformers. This type of steel material contains 0.5%-4.5% silicon in weight with low carbon of less than 0.08%. The addition of silicon (Si) improves the magnetic softness and increases the electrical resistivity of steel. There are two forms of silicon steel: grain-oriented (GO) and non-oriented (NGO). GO silicon steel can be further subdivided into regular grain-oriented (RGO) and high permeability grain-oriented (HGO) materials. Silicon steel is known for its high permeability and low amounts of core loss, which make it useful in the generation, distribution, and consumption of electricity, such as small to large motors, relays, solenoids, appliances’ motors, wind turbines, cores of transformers, EV, and power generator equipment, etc.

The thin silicon steel strips are suitable for being used at higher frequencies. The thickness of the silicon steel strips haVE been reduced to the world's thinnest level, reducing the core loss caused by eddy currents. Combined with the insulation coating technology, the lamination factor is improved.

The thin silicon steel strips improve energy consumption and reduce size in high-frequency reactors, transformers, and motors.

The thin silicon steel strips reduce cost and improve the equipment performance at high frequencies.

Magnetic Parameters

Table 1 Core loss properties
GradeCore loss (W/K
Table 2 Permeability and magnetic flux density properties
GradeAlternating permeability x 10-3 (H/m)Magnetic flux density (T)

Note: The specimens are taken from the strips parallel to the rolling direction. The measurements are in accordance with JIS C 2550 after stress relief annealing.

Table 3 Mechanical and electric properties
GradeDensity(g/cm3)Space factor(%)Tensile strength(N/mm2)Elongation(%)Hardness(Hv)Specific resistance(μΩcm)

Note: 1. Tensile strength and elongation are measured parallel to the rolling direction.

          2. Hardness are measured by *1: H;0.5Kg, *2: H;0.3Kg, *3: H;0.1Kg.

Table 4 Comparison of properties between various magnetic materials
MaterialMagnetic flux densityB8 (T)DC max relativepermeability μm Core lossW1/20000 (W/Kg)Specific resistance(μΩm)
High silicon steel (0.1t)1.2923,000310.82
Dust core (Sendust)0.6515062>10,000
Ferrite (Mn-Zn)0.453,5003>100,000


1.Thanks to the high permeability, low LH, and high resistivity of silicon steel, the hysteresis loss and eddy current loss are small.

2.Silicon steel requires high plasticity, smooth and flat surface, and low harmful inclusion in order to satisfy the process of punching and shearing, improve magnetic induction, and reduce hysteresis loss.

3.At present, the production process of hot-rolled silicon steel has been eliminated in China and replaced with cold-rolled silicon steel. The iron loss performance of the silicon steel that CUMIC supply far exceeds the iron loss requirements of the international standards.
