C12000 Copper Plate/Sheet

Short Description:
Alloy Grade: C11000, C12000, C12200, C10200, C10300 etc.
Purity: Cu≥99.9%.
Specification: Thickness 0.15-80mm, Width≤3000mm, Length≤6000mm.
Temper: O, 1/4H, 1/2H, H.
Lead Time: 10-30 days according to quantity.
Service: Customized service.

The company has sufficient inventory and can be picked up at any time.

sales@lhsteelgroup.com

Product Description

"CNZHJ" copper plates (C11000/C10200/C10300) are manufactured in compliance with the specific process demands of different industry sectors, which are developed to transmit the best possible durability, strength as well as resistance against corrosion. With the Copper plates made available in varied sizes and shapes, here our expertise also lies in custom designing these plates as per the client’s specific requirements.

ItemCopper sheet
StandardJISH3250-2006,ASTMB152M,GB/T2040-2008,etc
Material

T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,

 TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,

TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,

C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, C44400,

C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000, C71500,C71520,C71640,C72200,etc

SizeThickness0.1mm~500mm or as required.
Width4mm~2500mm or as required.
Length1m~12m or as required.
Hardness1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surfacemill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Export toEurope, Asia, Middle East, South America, Africa, Oceania
PackageStandard export package ,or as required.
Application

1.Pancake Coil for ACR, General Engineering Applications

2.LWC Coil for ACR, General Engineering Applications

3.Straight Copper Tubes for ACR and Refrigeration

4.Inner-grooved copper tube for ACR and Refrigeration

5.Copper Pipe for Transportation System of water, gas and oil

6.PE-coated copper tube for water/gas/oil transportation system

7.Semi-finished Copper tube for industrial applications



Specification Parameters

Fabrication Properties

Joining TechniqueSuitability
SolderingExcellent
BrazingExcellent
Oxy Acetylene WeldingGood
Gas Shielded Arc WeldingGood
Coated Metal Arc WeldingNot Recommended
Resistance Welding – SpotFair
Resistance Welding – SeamFair




Fabrication TechniqueSuitability
Capacity for Being Cold WorkedExcellent
Capacity for Being Hot WorkedGood
Hot Working Temperature750 – 950 °C
Annealing Temperature250 – 650 °C
Stress Relieving Temperature200 – 250 °C
Machinability Rating20% of free cutting brass
Polishing/Electroplating FinishExcellent

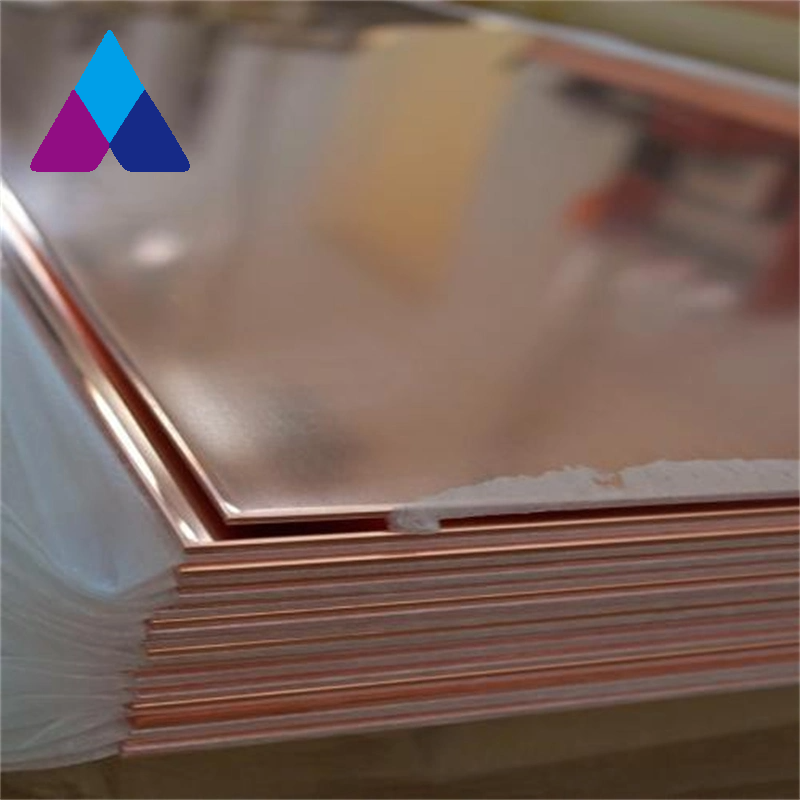

Product Display

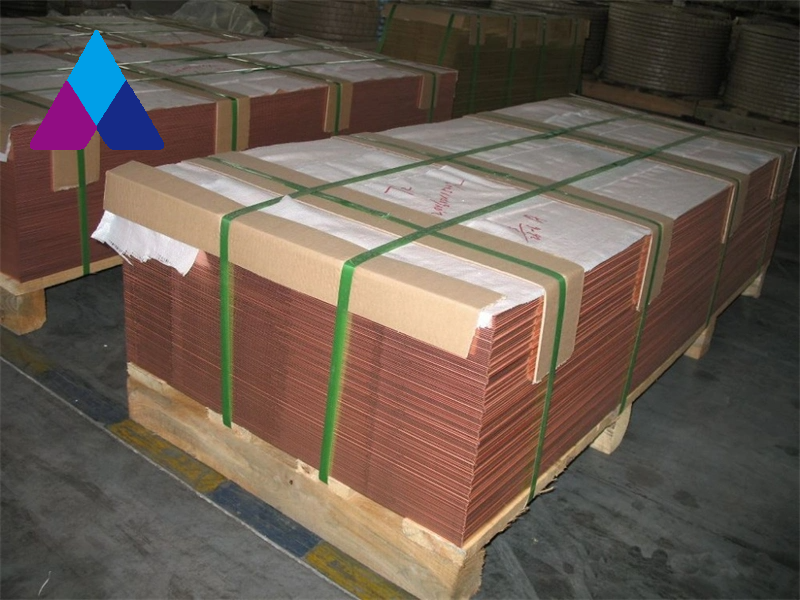

Packing and Shipping



FAQ:

 1. Q: Do you provide samples?

     A: Yes, we can provide samples, but there is a charge,which will be refunded after placing the order.


 2. Q: How is your quality? How do you guarantee the quality?

     A: our company has passed many certifications, each product has to go through 4-5 processes of inspection, with the  corresponding quality test report and certificate. Welcome customers to our factory for inspection.


 3. Q: How long is your delivery time?

     A: For Stocks, we can send the goods to loading port within 7 days after receiving the deposit ;For production period,it usually needs about 15 days ~30 days after receiving the deposit.


 4. Q: Where's your factory?

     A: Our factory is in Shandong Province afforded enough production ability and earlier delivery time.


 5. Q: What is your terms of payment?

     A: 100% T/T advance.

         30% T/T and balance against copy of documents.

         30% T/T advance, balance T/T at sight.


 6. Q: Can we visit your factory?

     A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.


Video

Company Profile

Shandong Linghang Steel Group Co., Ltd. is located in Jinan, Shandong Province, with convenient transportation. The company was established in 2020 with a registered capital of 20 million yuan.
Currently, there are nearly 100 employees. This company specializes in producing stainless steel.Steel plate, stainless steel tube, stainless steel bar and other stainless steel profiles. In addition, it also produces various alloy plates. The main materials of our products are TP304/304L, TP316/316L, TP321, 310S, 904L, S31803, 2520Si2, Monel400, etc. There is in the company the annual output of various stainless steel products is more than 10,000 tons, mainly including Used in petroleum, chemical industry, shipbuilding, construction, decoration, semiconductor, Automobile engine, locomotive braking system, gas equipment manufacturing, instruments and meters Equipment, food processing, catering, brewing and other industries.
